PROTIMETER REACHMASTER PRO®

FOR USE WITH:
•Wood •Drywall •Building Materials •Concrete •Fiberglass Boat Hulls

No more climbing ladders, or working on your hands and knees, like you would with conventional moisture meters!



The ReachMaster Pro is a non-invasive moisture meter enabling the rapid assessment of moisture conditions in buildings.



Typical initial moisture surveys can increase inspection time by up to 60%, but the ReachMaster Pro makes measurements of floors, hard to reach walls and ceilings quick, safe and easy. Along with unrivaled depth of measurement and sensitivity adjustment.



All Protimeter instruments have a two-year warranty.



ReachMaster Pro

Features

  • Non-invasive moisture measurement
  • Wireless communication between sensor head and display

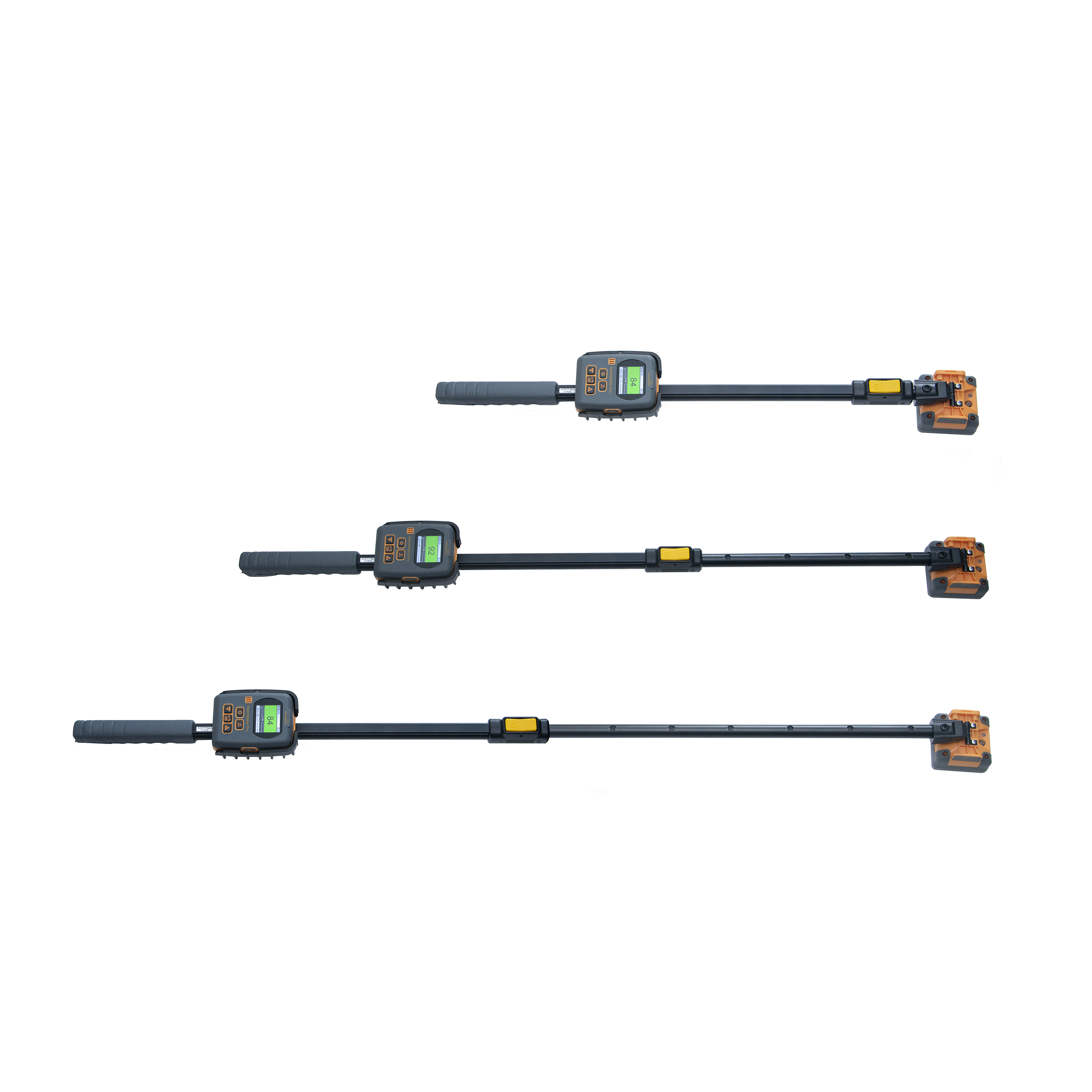

  • Telescopic handle adjusts from 27” to 48” (685mm to 1219mm)
  • Depth of Measurement: Up to 5” (120cm) - Varies with material under test

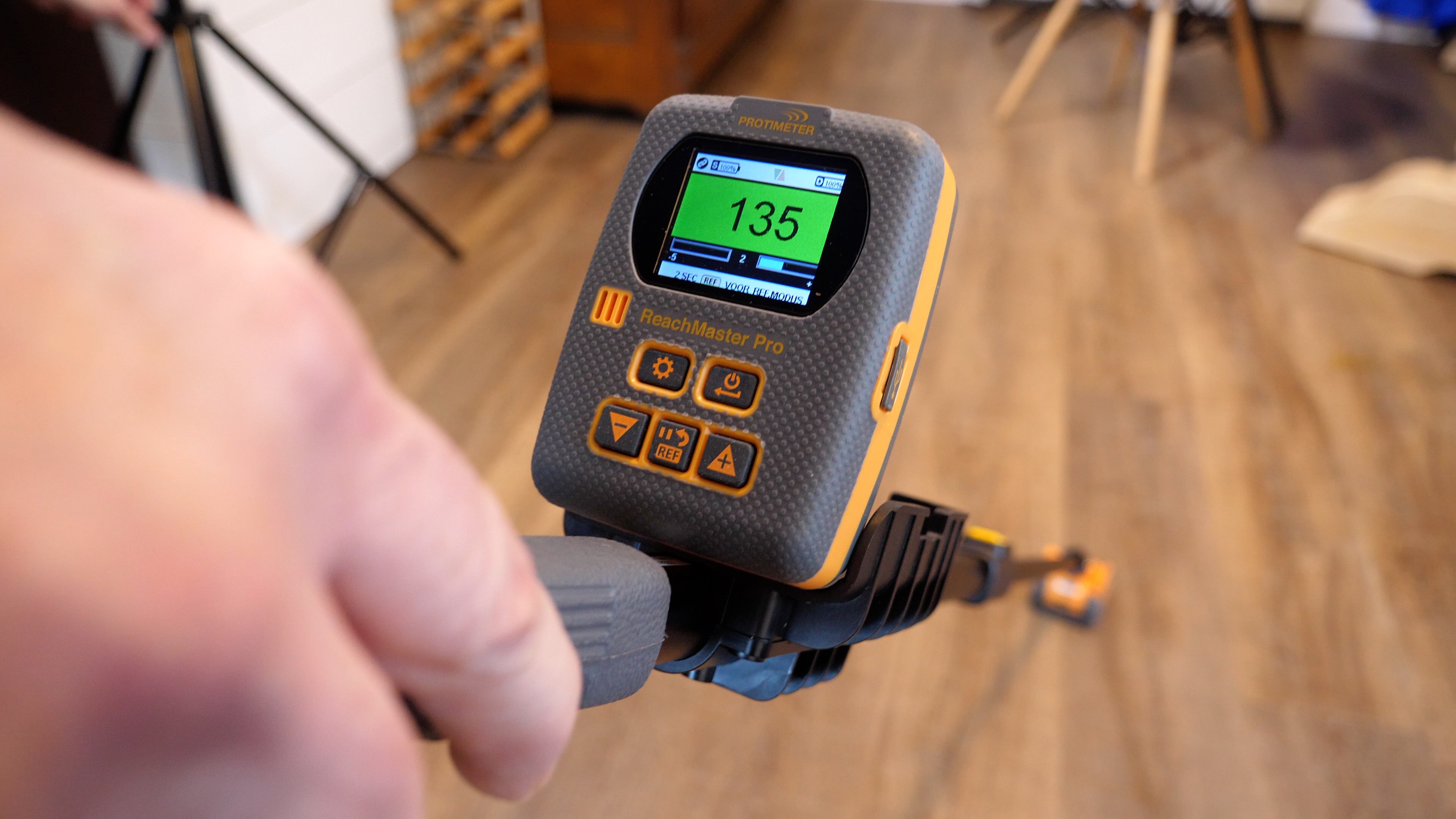

  • Color Display: Tilt-adjustable with red, yellow and green zones
  • Measurement Range: 60-999 ppm
  • Audible alarm
  • Auto shut-off
  • Adjustable sensitivity to focus in on moisture source
  • Multi-language menu
  • Replaceable sensor wear plate with wear indicator on abrasion plate (1 spare included)
  • Simple field recalibration
  • Battery Life: 80 hours on continuous operation
  • Battery Requirements: 4x AA in display unit, 2x AA batteries in sensor head
  • Firmware upgradeable by user as new features become available

    • Benefits

  • Easy and quick moisture detection on floors, walls and ceilings
  • Eliminates working on hands and knees, as well as climbing ladders
  • Not adversely affected by surface moisture
  • Significantly quicker moisture assessment than handheld meters

    • Applications

  • Flood damage restoration
  • Flooring inspection
  • Home inspection
  • EIFS inspection
  • Rubber roof leak detection
  • Fiberglass marine hull inspection

    • Specifications

    Operating Conditions: Temperature: 0°C to 50°C
    Relative Humidity (RH): 0 to 35%
    Measurement Specifications: Non-invasive, instantaneous readings
    Surface moisture is not adversely affected
    Measurement Depth:
    (Varies with material under test)     		Maximum: 5” (120cm)
    Minimum: 70mm (7cm)
    Measurement Range: 60 ppm to 999 ppm
    Power Requirements: Sensor Head: 2x AA Alkaline Batteries ~ 2700mAH
    Display Module: 4x AA Alkaline Batteries ~ 2700mAH
    Battery Indications: Battery level indication on display unit
    Battery low LED indication on sensor unit
    Battery level indication on display
    Gross Weight: 24.7 oz (700 g) - Instrument only
    Regulatory Compliance: CE, RoHS, ETL
    User Interface: Display Graphical LCD
    Size: 2”
    Resolution: 176 X 220
    Backlight (with adjustable brightness)
    User application profiles
    Sticky memory, last used application settings
