The Protimeter Mini C is a pin type moisture meter that displays instant moisture content results on its 6 to 30% LED scale. The three-color coded LED scale gives the operator instant information regarding "Dry", "At Risk" or "Wet" conditions. All Protimeter instruments have a two-year warranty.
It is important that hardwood finish materials are in moisture equilibrium with the local indoor environment. The Mini C has this information printed right on the label. For example, a 70°F (20°C) environment with an average relative humidity of 60% would require a moisture content of approximately 11%.
The Mini C can also be used to make quick reference readings on concrete sub floors. These readings are surface, but allow th operator to quickly determine the moisture risk.
A range of optional extras are available, including pin extension probes and a hammer electrode for getting measurements up to 1-1/2" (38mm) below the surface.
| Range | 6-30% |
|---|---|
| Display | LED bar graph with numerical display |
| Resolution |
|
| Battery | 1x9 V Auto shut off |
| Warranty | 24 months on mechanical or manufacturing defects. Does not include wearing part or accessories. |
| Packaging |

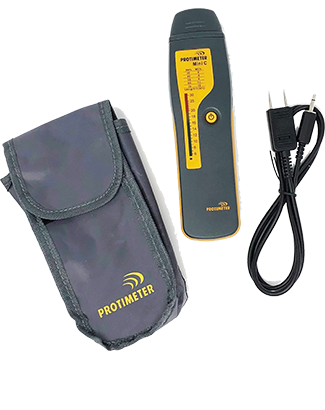

Two replacement pin electrodes Pin protection cap Calibration check device Velcro pouch Calibration chart for 150 wood species |
| Weight | Including batteries, 0.330 lb (150g) |
| Dimensions | 7.02 in x 1.09 in x 1.91 in (180 mm x 28 mm x 49 mm) |
| Batteries | 1 x 9V included |
